Stimulation of IL-16 Release by Cells Exposed to HIV Virion Proteins

Received Date: September 08, 2018 Accepted Date: December 17, 2019 Published Date: December 19, 2019

Copyright: © 2021 Ariff S. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Related article at Pubmed, Google Scholar


Background: The pathogenesis and immune response to a chronic viral infection is multifaceted especially for HIV infection. The effect of HIV on the systemic immunoenvironment of the infected individual is profound and triggered by multiple stimuli. While replication competent viral infection induces a large spectrum of immune responses, such as cytokine release, we focused on what happens when cells are exposed to replication incompetent virions and their components.

Results: Monitoring the cytokines released from T cell lines exposed to HIV virion components, we found several cytokines were upregulated with IL-16 being the most upregulated. HIV virion components induced Caspase-3 activation which is required for IL-16 release and this IL-16 release is dependent on protein components within the HIV virion.

Conclusion: Overall, this work allows us to see that replication incompetent HIV virions have an impact on the immune landscape of a person infected by HIV. In particular, we see that exposure of T cells to HIV virion proteins leads to Caspase-3 activation and subsequent IL-16 release.

Keywords:HIV; AIDS; Innate Immunity; Cytokines, Cytokine; Array; IL-16; Caspase-3


As of 2014, it is estimated that 36.9 million people are living with Human Immunodeficiency Virus (HIV) worldwide with about 2 million newly infected per year. HIV is estimated to cause about 1.2 million deaths among adults and children annually. Although there has been much improvement in both prevention and treatment, realization of completely effective therapies, cures or vaccines requires a better understanding of the pathophysiology and immunological consequences of HIV infection.

In particular, as a virus with immune system tropism, HIV induces broad, system-level changes in cytokine levels in an individual infected with HIV [1,2]. While certain major cytokines have been well studied, including those associated with mortality from HIV, few studies have looked at comprehensive cytokine analysis after exposure to HIV [3].

HIV-1 infects CD4+ T cells. Prior research on cytokine response to HIV-1 has shown that HIV-1 causes a decrease in Th1 cytokines (IL-2, IFN-gamma) but causes an increase in Th2 and inflammatory cytokines (IL-4/IL-10 and TNF alpha respectively). Reconstituting Th1 cytokine response has been demonstrated to improve CD8+ T cells and control of the virus [4]. Other cytokines such as IL-16 and IL-2 have an inhibitory effect on HIV-1 and have been suggested as possible therapeutic modalities [5 ]. During any viral infection, a high level of defective virions is released into the local microenvironment as exemplified in the evolution of Influenza virus [6]. These defective virions are often structurally-sufficient to gain entry into cells.

The goal of this work is to investigate how exposure to HIV virion components modulates normal cytokine release using an unbiased approach. We found that exposure to HIV virion components induce the release of several cytokines with IL-16 being most induced. We further focused on IL-16 release since levels of IL-16 have been shown to be increased in the initial stages of HIV-1 infection, followed by a decrease as HIV infection progresses [7,8]. This strongly implies that IL-16 is involved in initial immune response to the HIV. Here we also show how HIV exposure induces IL-16 production.

Materials and Methods
Materials and Methods

CEM and Jurkat, both leukemic CD4+ T cell lines, were cultured in RPMI + 5% Fetal Bovine Serum (FBS) + 1% Penicillin/ Streptomycin (P/S). We use 5% FBS to limit innate immune signaling. Cells were incubated at 37 °C and 5% CO2 and maintained by diluting to 1x105 cells/mL every 2-3 days to allow growth. Cells were used at a working concentration between 2x105 and 5x105 cells/mL. HEK 293T cells, a transformed human embryonic kidney epithelial cells line that expresses the Large T Antigen from SV40, was grown in DMEM + 5% FBS + 1% Penicillin/Streptomycin and maintained at 20-70% confluence. All cell lines were purchased from ATCC.

Transfection of HIV Lysate

Cells were transfected with purified HIV Virion Lysates (ABI) with Lipofectamine 2000 (Invitrogen, Corp) transfection reagent according to a modified manufacturer’s protocol as described below. Jurkat and CEM cells were transferred to RPMI + 5% FBS with no P/S at cell concentration of either 2x105 or 5x105 cells/mL in 12-well dishes. To 400 μL of RPMI, 12 μL of Lipofectamine 2000 reagent was added and allowed to incubate for 5 minutes at room temperature. After the incubation, 50 μL of the RPMI/Lipofectamine 2000 reagent mix was added to tubes with 0 μL (vehicle), 1 μL, 3 μL, 6 μL, or 9 μL of HIV lysate and allowed to incubate for 15 minutes at room temperature. After incubation, these mixtures were added to the appropriate cells. Transfected cells were grown for 24-48 hours under the conditions as described above.

Cytokine Array Assay

Changes in cytokine production were assessed with Human Cytokine Array Panel A (R&D Systems) according to the manufacturer’s instructions. In brief, nitrocellulose membranes in a 4-well multi-dish, spotted with antibodies for a panel of cytokines, were blocked to prevent nonspecific binding. Signal produced by the cytokine array was detected and quantitated by a computer-aided gel documentation system (Bio-Rad).


Neat supernatants from transfected cells were analyzed by a DuoSet ELISA system (R&D Systems) using the Human IL-16 protocol (DY316) or Human IFN-γ protocol according to the manufacturer’s instructions.

Enzymatic Treatment of HIV Virion Lysates

HIV Virion Lysates were treated with 1μl of RNase A for 20 minutes at 37 oC, with 1 unit (0.5 μl) of Ribonuclease H for 20 minutes at 37 oC, 10 μl of Proteinase K at 50 oC for 30 minutes or mock treated. Enzymes were inactivated at 65 oC for 20 minutes. Either 1 ml or 10 ml of treated lysates were transfected into CEM cells for 36 hours and supernatants were analyzed by ELISA for IL-16 production, as described above.

Exposure to HIV Virion Components Induces Modulation of Specific Cytokines

To better understand how CD4+ T cells are affected by exposure to HIV virions we utilized a Human Cytokine Array to interrogate the modulation of different cytokines. We used CEM CD4+ T cell lines and transfected a lysate from purified HIV virions into the cells. In this manner we mimicked exposure of the CD4+ T cells to defective virions. Supernatants from the transfected CEM cells were analyzed by a Human Cytokine Array to detect levels of cytokine with or without exposure to HIV components (Figure 11).

Cytokine levels were quantitated and displayed in Table 1 along with a list of cytokines that were not detected.

The cytokine array measures 36 different cytokines and we compared cytokines levels in CEM cells transfected with virion lysates versus CEM cells exposed to vehicle alone. As shown in Figure 1, some cytokines were upregulated while others downregulated. Each pair of spots corresponding to the different cytokines on the Human Cytokine Array were digitally quantitated and reference spots were used to normalize each of the cytokines. We plotted ratios of signal for each cytokine as viron-exposed cells compared to vehicle alone cells. Several cytokines had increase in expression, most notably IL-16. On the other hand, several cytokines had a decrease in their expression, with CCL5 showing the biggest decrease in expression. Many other cytokines on the panel had no expression by CEM CD4+ T cells and all array data is presented in Table 1.

IL-16 is released upon Exposure to HIV Virion Components

IL-16 has been well-known to limit HIV replication so we were intrigued by the high induction seen when we exposed our samples to HIV virion lysates [9]. To confirm the results from the cytokine array, we exposed CEM and Jurkat CD4+ T cell lines to HIV virion lysate and quantitated the levels of IL-16 produced using ELISA. Two separate cell concentrations of CEM CD4+ T cells were transfected with different amounts of HIV virion lysate, while Jurkat cells were transfected at one concentration of cells. Supernatants of the cells were assayed to quantitate the level of IL-16 produced.

CEM cells demonstrated increasing release of IL-16 in response to increasing concentrations of HIV Virion Lysate at different cell concentrations (Figure 2a). Jurkat cells demonstrated increasing release of IL-16 in response to increasing concentrations of HIV Virion Lysate at one cell concentrations (Figure 2b). Transfection of HEK 293T cells, which are not CD4+ T cells, showed no production of IL-16 (Data not shown). In addition, transfection of CEM cells with HIV Virion Lysate showed no production of the cytokine IFN-gamma (as prior studies have found decreased expression), confirming the data from the Human Cytokine Array (Data not shown) [10].

Exposure to HIV induces Caspase Activation

Since IL-16 release is dependent on activation of Caspase 3, we monitored activation of Caspase 3 upon exposure of CEM cells to HIV Lysate [11,12]. Caspase 3 activation can be monitored due to the proteolytic cleavage of Caspase 3 into a smaller form. To see this we used western blotted for the production of the smaller form of Caspase 3 during exposure to HIV Lysate. As shown in Figure 3, exposure of CEM cells to HIV Lysate induced a smaller form of Caspase 3 as cells are exposed.

Virion Proteins, but not Virion RNA, induces IL-16

Cytokines are released upon initiation of cellular signaling within cells. In an effort to better understand what type of immune signaling is being initiated, we treated virion lysates with enzymes to remove different molecular components. Specifically, we pre-treated virion lysates with RNaseA to remove RNA, RNaseH to remove reverse transcriptase intermediates or ProteinaseK to remove protein components of the virions. The treated virions were then exposed to CEM cells and the levels of IL-16 in the supernatants were assessed by ELISA. The production of IL-16 was below the limit of detection for the supernatant from CD4+ T cells transfected with virion lysates treated with ProteinaseK. The supernatant from CD4 T cells treated with RNaseA and RNaseH still showed detectable levels of IL-16 production in a dose-dependent manner (Figure 4).


HIV has evolved to efficiently persist in a person due to its ability to intricately manipulate the host immune response as well as its viral proteins [13,14]. HIV appears to manipulate the delicate balance of cytokines essential in normal immune function towards its goal of immune evasion and a heightened ability to spread [14]. To model this process, we transfected CD4+ T cells with lysates from purified HIV virions. We used Human Cytokine Arrays to interrogate a set of cytokines and how they are affected by exposure to HIV virions. The HIV Virion Lysate transfected CEM cells yield both induced and blocked expression of cytokines.

Induced Cytokines

We saw that levels of IL-16, a chemoattractant for immune cells, were greatly increased after CD4+ T cells were exposed to HIV Virion Lysate [15]. Previous studies have found that IL-16 can induce human T-cells to be resistant to HIV infection [16,17]. As the HIV Virion Lysate represents the components of HIV virions, and not functionally-replicating virus, an actively-replicating virus may not induce IL-16, or may induce it at lower levels, allowing for replication. There may be a mechanism, possibly involved with blocking cleavage of the pro-IL-16 form, to suppress the normal release of IL-16 in patients living with HIV infection and should be further studied. However, this may also indicate an initial induction of IL-16, as has been demonstrated in early infection of a cohort of patients living with HIV infection, with blockage of IL-16 occurring at later stages of the infection [18]. These temporal aspects of IL-16 release may be a fitting target for future therapies.

We also observed that sICAM-1 (a soluble form of an intracellular adhesion marker), which plays a role in immune system activation, was increased. This trend has also been demonstrated in patients living with HIV infection [19]. Furthermore, we saw an increase in MIF (macrophage migration inhibitory factor) when exposed to HIV virion components. This is observed in patients with HIV, where MIF activates signaling pathways that aid in HIV-1 replication [20].

Down-regulated Cytokines

Cytokines such as CCL5 (RANTES), which inhibits HIV-1 by binding and blocking the CCR5 HIV-1 co-receptor, were decreased in the HIV Virion Lysate transfected samples [21]. Additionally, IP-10 (CXCL-10), which is secreted in response to IFN-gamma and aids in recruitment of cytotoxic T-cells, also decreased [22]. This could help limit the cytotoxic T-cell recruitment and killing of HIV-infected cells.

Mechanism of IL-16 Release

Our experiments show a positive correlation between increasing HIV lysate concentrations and IL-16 production levels. Without any HIV lysate, IL-16 productions levels were minimal-to-undetectable in our control cells. Therefore, we can conclude that when CD4+ T cells are transfected with HIV Virion Lysate, they increase IL-16 production.

When we enzymatically removed the protein components of HIV Virion Lysate, IL-16 production levels (of the CD4+ T cell supernatant) fell below the detectable range. Eliminating any other part of the HIV Virion Lysate did not significantly decrease the level of induced IL-16. This may indicate that CD4+ T cells recognize a protein segment of HIV-1 and we conclude that HIV proteins stimulate CD4+ T cells to produce IL-16.

IL-16 is expressed in high abundance in CD4+ and CD8+ T cells, as well as in a larger precursor protein in some neuronal cells. In CD4+ T cells, antigen or mitogen has been shown to stimulate the translation of the pro-IL-16 protein, which is then cleaved by active Caspase 3 to the active IL-16 form. The pro-IL-16 molecule is translated and positioned in the perinuclear area of the cytoplasm in lymphocytes. In response to stimulus, Caspase 3 cleaves this molecule releasing the C-terminal portion (including a PDZ domain) as active IL-16. The N-terminal portion has a nuclear translocation signal which directs it into the nucleus where it subsequently induces arrest of cell cycle in G0/G1. There appears to exist some unknown mechanism to prevent localization of the pro-IL-16 molecule to the nucleus prior to cleavage thus preventing premature cell cycle arrest. This perhaps is related to the PDZ domain in the C-terminal portion or possibly related to the size of the pro-molecule preventing localization to the nucleus. Induction of IL-16 changes signaling within the cell and appears to have antiviral mechanisms that are both intra- and intercellular [12,23-25].

Located in both the cytoplasm and nucleus of T cells as a pro-molecule, IL-16 has many functions. In the cytoplasm, Pro-IL-16 is cleaved by Caspase-3 and the activated IL-16 has a chemoattractant property for predominantly Th1 T cells (having binding properties to CD4 receptors and triggering secretion of IL-2) [26]. In addition, IL-16 has been found to protect CD4+ T cells from activation-induced cell death [27]. IL-16 has multiple regulatory properties on mast cells and basophils including making them less susceptible to M/R5-tropic strains of HIV-1 [28]. The cytokine also has inhibitory properties of Th2 T cells, direct inhibitory properties to HIV, and the nuclear cleaved products of pro-IL-16 induces cell cycle arrest, as mentioned above [9,29]. These activities may by the reason why IL-16 levels have been shown to be decreased in progression to AIDS as the viral levels increase-however- further studies have demonstrated elevation of IL-16 levels in correlation with anti-protease activity (protease inhibitor therapy) and some HIV-1 long-term nonprogressor patients. Unlike protease inhibitor therapy, IL-16 levels have been observed to remain grossly unchanged after structured interruption of HAART therapy [26,30,31]. It is possible that HIV must inhibit IL-16 to propagate, to ultimately lead to AIDS.

IL-16 direct inhibition of HIV-1 appears to have multiple possible mechanisms [32]. The first mechanism involves IL-16 interaction with CD4 receptors. IL-16 binding to CD4 receptors was mapped to the D4 immunoglobin-like loop of the receptor-however- this region is not involved in binding MHC II molecules or gp120 proteins of HIV-1 [5]. Instead, IL-16 has been found to form homodimers initially, then use disulfide bonds in conjugation to CD4 dimers to form a tetramer complex. This complex has anti-HIV activity. The tetramer may lower the level of CD4 available to interact with the co-receptor CCR5, ultimately lowering the affinity of both receptors to gp120, resulting in less viral activity. The second mechanism does not involve blocking viral entry (mediated via gp120 binding sites) but instead appears to down regulate the long-term repeat promoter activity of HIV-1 [33].

IL-16 has been shown to increase in the initial stages of HIV-1 infection and may represent an adequate immune response to inhibit the virus. At later stages, as the viral load increases, IL-16 levels sharply decline. However, some long-term non-progressors (without symptoms or detectable viremia) fail to show an increase in IL-16 levels, as they may lack the initial stimulus for IL-16 levels to increase, possibly viral load [18].

IL-16, as previously discussed, has properties of a CD4 ligand, inhibiting HIV-1 replication and entry into CD4+ T cells, monocyte-derived macrophages, and dendritic cells. IL-16 is also a chemoattractant for T cells, monocytes and eosinophils. In parallel to its effect on IL-16, HIV-1 infection causes a decrease in secretion of Th1 cytokines such as IL-2, IFN-gamma, but causes an increase in secretion of Th2 cytokines such as IL-4, IL-10, and inflammatory cytokines such as TNF-alpha, IL-1, IL-6, IL-8. As a result, cytotoxic T cells do not get activated, as would normally be seen in a Th1-mediated response to an intracellular virus. HIV-1 causes this paradoxical viral response cytokines while limiting the effectiveness of cell-mediated immunity.

Of further interest is the ability of IL-16 to enhance the IL-2 receptor alpha and HLA-DR expression, as well as suppress HIV-1 promoter activity in CD4+ T cells. Serum levels of IL-16 initially remain normal or slightly increased in asymptomatic patients living with HIV, but serum levels of IL-16 then undergoes significant depletion as HIV infection progresses. IL-2 treatment for two weeks has been shown to dramatically increase the level of IL-16 in patients living with HIV infection [21]. IL-16 stimulates CD4+ T cells to respond to IL-2 by up-regulating expression of the IL-2 receptor, CD25. Co-treatment of PBMCs with IL-16 and IL-2 expands the CD4+ T cell population [5].


In conclusion, exposure of CD4+ T cells to HIV Virion Lysate was found to induce IL-16 release - moreover, a protein component of the lysate was found to be the active component that induced this cytokine release. Although IL-16 levels have been found to be elevated in early stages of HIV-1 in vivo infection, IL-16 levels decrease as viral load increases. Induction of IL-16, a known HIV-1 inhibitor, appears to run contrary to sustained HIV-1 infection. This may indicate that HIV-1 has a mechanism of blocking sustained IL-16 release to avoid the inhibitory effect of higher levels of the cytokine. Identifying this unknown protein as well as discovering the mechanism by which HIV-1 evades the IL-16 response is crucial. Further studies looking for this mechanism is of paramount, as well as exploration of administration of IL-16 as a therapeutic approach to inhibition of HIV-1 in patients. Additionally, understanding the mechanisms and patterns of cytokine dysregulation may lead to targeted therapies that include administration or inhibition of certain cytokines to maximize the normal immune response to HIV-1. Also, prior research has shown progressive destruction of CD4+ T cells during HIV infection, causes loss of associated cytokines, but the extent of overall cytokine dysregulation is unclear and warrants further investigation [37]. As further research is also looking into using immunotherapy and therapeutic vaccines to combat HIV, a combination approach with targeted cytokine modification could be beneficial as a multi-prong treatment [38]. Comparing HIV-caused cytokine dysregulation to the response in other viral infections, such as dysregulation by West Nile Virus, may hold a clue to augmenting cell-mediated immunity to HIV-1 [39].


A special acknowledgment to DMJr for insight and discussion, particularly into the experimental design of the research, as well as writing of the paper. This work was financially supported by startup funds from Western University of Health Sciences and support of the Western University of Health Sciences College of Pharmacy and an intramural grant from the Office of the Vice President for Research and Biotechnology. DJS was in part supported by funds from NIH-NIDCR 1R03DE023307 and NIH-NIAID 1R15AI138847.

1Selimova LM, Kalnina LB, Serebrovskaya LV, Ivanova LA, Gulyaeva AN, et al. (2016) [CYTOKINES DURING THE HUMAN IMMUNODEFICIENCY VIRUS INFECTION TYPE 1(HIV-1)]. Vopr Virusol 61: 39-41.
11 Zhang Y, Center DM, Wu DM, Cruikshank WW, Yuan J, et al. (1998) Processing and activation of pro-interleukin-16 by caspase-3. J Biol Chem 273: 1144-9.
12Zhang Y, Kornfeld H, Cruikshank WW, Kim S, Reardon CC, et al. (2001) Nuclear translocation of the N-terminal prodomain of interleukin-16. J Biol Chem 276: 1299-303.
14McMichael AJ, Rowland-Jones SL (2001)Cellular immune responses to HIV. Nature 410: 980-7.
15 Cruikshank WW, Kornfeld H, Center DM (2000) Interleukin-16. J Leukoc Biol 67: 757-66.
16Baier M, Werner A, Bannert N, Metzner K, Kurth R (1995) HIV suppression by interleukin-16. Nature 378: 563.
18 Bader A, Brockmeyer N, Schnaitmann E, Mertins L, Otteken A, et al. (2001) Interleukin-16 serum levels during the course of HIV-1 infection. AIDS 15: 528-9.

Journal of Immunology and Infectious Diseases

Tables at a glance
Table 1
Figures at a glance
Figure 1
Figure 2
Figure 3
Figure 4

CEM CD4+ T cells were transfected with HIV Virion Lysates or transfection vehicle alone. Cytokine levels in the supernatant were then quantitated using a Cytokine Array Profiler. Digital quantitation of the cytokine spots (left panel) on the array was used to determine the relative change in cytokine levels for the cytokines and the ratio of signal for the most induced and most decreased cytokines are graphed on the right panel.
Figure 1: Exposure to HIV Virion Components Modulates Cytokines Levels in CD4+ T cell Lines


Ratio of HIV Lysate/Vehicle





















Table 1: Ratio of quantification of cytokine levels in cells exposed to HIV virion lysate or transfection vehicle
Note: The following cytokines were not detected.
C5/C5a, CD40L (CD154), G-CSF (CSF-3, CSFβ), GM-CSF(CSF-2, CSFα), GR0α (CXCL1), I-309 (CCL1), IFN-γ (Type II IFN), IL-1α (IL-1F1), IL-1β (IL-1F2), IL-1ra (IL-1F3), IL-2, IL-4, IL-5, IL-6, IL-8 (CXCL8), IL-10, IL-12p70, IL-13, IL-17, IL- 17E, IL-27, IL-32α, I-TAC (CXCL11), MCP-1 (CCL2), MIP-1β (CCL4), Serpin E1 (PAI-1), TNF-α (TNFSF1A), sTREM-1.

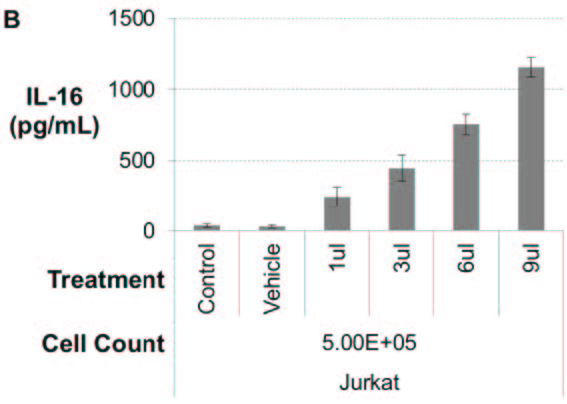

CEM (A) or Jurkat (B) CD4+ T cells were transfected with transfection vehicle or increasing HIV Virion Lysate. Cytokine levels in the supernatants were quantitated using ELISA. Figure 2: IL-16 is released by CD4+ T Cells Exposed to HIV

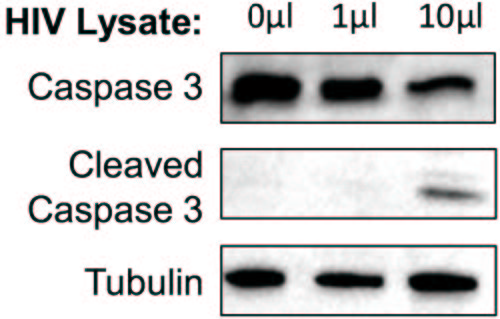

CEM CD4+ T cells were transfected with transfection vehicle or increasing amounts of HIV Lysates. Cell pellets were collected and whole protein level were assayed for Caspase 3, Cleaved Caspase 3 and Tubulin levels using Western blot analysis.
Figure 3: Caspase 3 is activated upon exposure to HIV Lysate

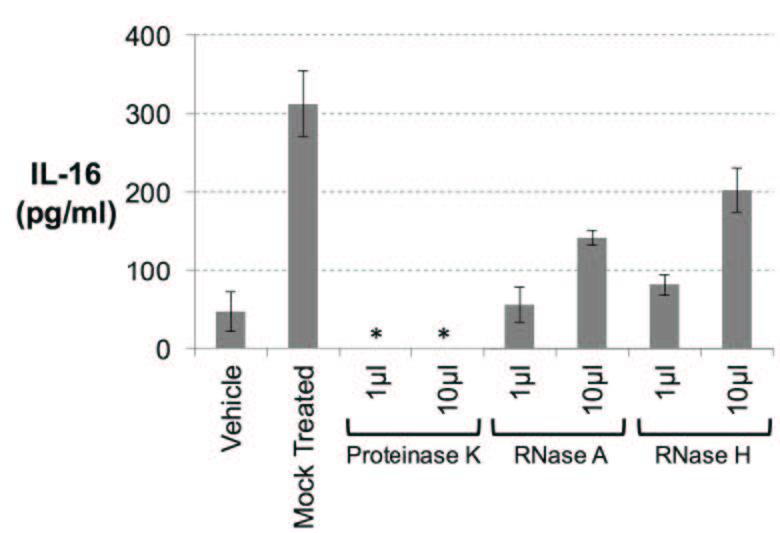

CEM CD4+ T cells were transfected with transfection vehicle or increasing amounts of HIV Virion Lysate that were either mock treated or pre-treated with ProteinaseK, RNaseA or RNaseH. Cytokine levels in the supernatant were quantitated using ELISA.
Figure 4: IL-16 release in cells exposed to HIV is dependent on virion protein components
